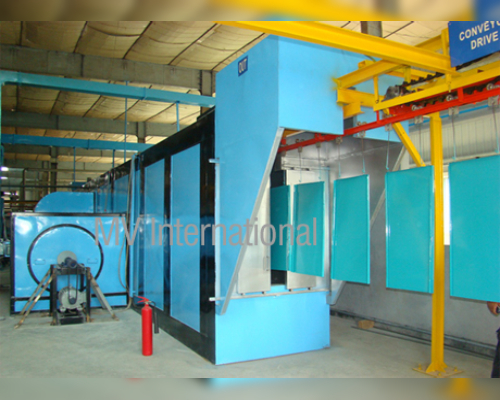

The Overhead Conveyorized Oven is designed for continuous curing, baking, or drying of components suspended from an overhead conveyor system.
It provides uniform temperature across all zones, ensuring consistent heating of moving parts. The oven operates up to 400 °C, with adjustable conveyor speed and PID-controlled temperature. The structure supports direct integration into coating or painting lines. Insulated panels reduce energy loss, and balanced airflow ensures uniform results. Commonly used for automotive parts, fixtures, and coated components, it enables efficient, high-volume processing.
| Application | For AC Coils, Painting, Automobiles, Metal Industry, Furniture etc. |
| Size of the working chamber | As per client requirement. |
| Material of Construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 1500C / 2500C / 4000C / 5000C |
| Air circulation | Vertical, Horizontal or Combination. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds. |
| Power supply | 415 Volts 3 Phase 50Hz / 60Hz. |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular. |
| Insulation | Ceramic Wool / Mineral Wool |
| Height Adjustable Door | Both sides on request. |
| AIR Curtains | Both Sides on request for minimize the heat loss. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Thermic OIL etc. |
