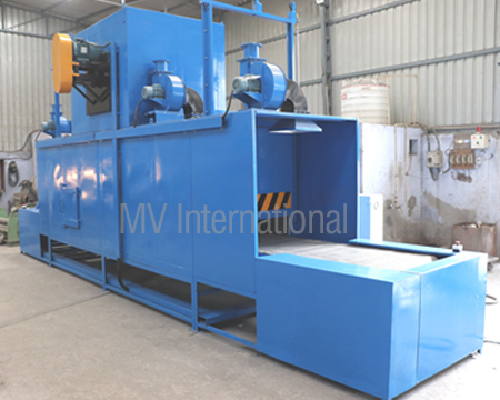

The Gas Fired Continuous Oven is built for large-scale continuous heating processes using gas as a clean fuel source.
It features high-efficiency burners and uniform air distribution for even temperature across all zones. The system allows precise control of conveyor movement and process timing for consistent results. With durable insulation and safety interlocks, it ensures stable operation and low energy consumption. Ideal for curing, baking, or drying in coating and manufacturing lines.
| Application | For AC Coils, Painting, Automobiles, Metal Industry, Furniture etc. |
| Size of the working chamber | As per client requirement. |
| Material of Construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 1500C / 2500C / 4000C / 5000C |
| Air circulation | Vertical, Horizontal or Combination. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds. |
| Power supply | 415 Volts 3 Phase 50Hz / 60Hz. |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular. |
| Insulation | Ceramic Wool / Mineral Wool |
| Height Adjustable Door | Both sides on request. |
| AIR Curtains | Both Sides on request for minimize the heat loss. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Thermic OIL etc. |
