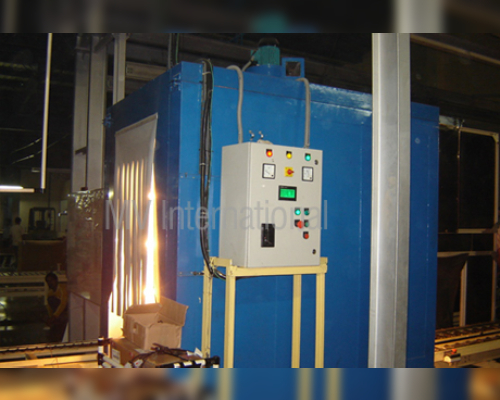

Infrared Conveyor Oven – M V International

At M V International, we engineer heavy-duty, energy-efficient Infrared Conveyor Ovens (commonly known as Continuous Infrared Tunnel Ovens, IR Mesh Belt Curing Tunnels, Fast-Response Radiant Conveyor Ovens, Continuous IR Drying Systems, or High-Speed Infrared Curing Ovens) designed to provide instant radiant heat transfer, rapid cycle times, and precise multi-zone thermal control for continuous drying, curing, preheating, and thermal processing applications.

Product Overview

An Infrared Conveyor Oven is an advanced continuous thermal processing system engineered for high-speed manufacturing lines, electronics assembly plants, textile printing operations, plastic molding facilities, and automotive component production. Traditional hot-air convection tunnel ovens rely on ambient air circulation to conduct heat gradually into workpieces, which can result in long tunnel footprints, high energy consumption, and slow production line speeds.

At M V International, our infrared conveyor ovens utilize high-efficiency ceramic, quartz tube, or catalytic infrared heating elements positioned along a continuous conveyor mechanism (mesh belt, flat wire, or motorized rollers). Infrared radiation transfers thermal energy directly to the product surface and substrate without heating the surrounding air mass. This instantaneous heat transfer drastically reduces drying and curing times from minutes to seconds, allowing for compact tunnel lengths, high line speeds, and substantial energy savings. Paired with multi-zone digital PID or PLC temperature regulators, optical infrared sensors, and variable-speed conveyor drives, our IR conveyor ovens deliver uniform, repeatable continuous heat processing.

Key Features & Advantages

• Instantaneous Radiant Energy Transfer: High-efficiency infrared emitters generate targeted short, medium, or long-wavelength radiant heat, penetrating materials instantly to slash drying and curing cycles.
• Compact Footprint & High Line Speeds: Rapid thermal reaction allows for significantly shorter tunnel lengths compared to traditional convection ovens, saving valuable shop floor space.
• Multi-Zone Independent Radiant Control: Emitter banks along the conveyor length are divided into independently regulated zones to create customized heating, soaking, and flashing thermal profiles.
• Non-Contact Optical Temperature Sensing: Non-contact optical pyrometers measure actual product surface temperature in real-time, enabling automatic power adjustments to prevent scorching or overheating.
• Variable Speed Conveyor System: Driven by AC motors equipped with Variable Frequency Drives (VFD) for precise regulation of belt speed, residence time, and component spacing.
• Comprehensive Operational Safety: Built with belt tracking guides, drive motor torque limiters, airflow cooling blowers for IR lamps, over-temperature cutouts, and emergency stop stations.

Technical Specifications

Industrial Applications

• Electronics & Semiconductor Assembly: Rapid curing of conformal coatings, baking solder masks, drying adhesives, and preheating circuit board assemblies.
• Textile & Screen Printing: High-speed drying and curing of plastisol inks, water-based dyes, and screen-printed graphics on garments and continuous fabrics.
• Plastics, Rubber & Packaging: Thermal softening and preheating of plastic sheets prior to thermoforming, curing silicone gaskets, and shrinking sleeve labels.
• Automotive & Industrial Finishing: Rapid flash-off and curing of liquid paints, primers, powder coatings, and protective lacquers on flat and low-profile components.
